| 브랜드 이름: | Cablein |
| MOQ: | 100pcs |
| 가격: | The price ranges from $1 to $4 USD per pieces |
| 포장에 대한 세부 사항: | 고품질 수출 상자 |
| 지불 조건: | T/T, 서부 동맹 |
Rating: IP68
Installation Type: Butt-Mount Style
Connection Type: Threaded
Waterproof Ring: 3-6.5mm
Material: Plastic
Clamping Component: Nylon
| Parameter | Specification |
|---|---|

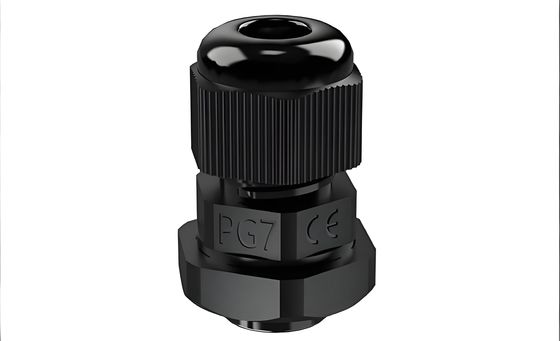

| Product Name | PG7 Plastic Waterproof Connector, Nylon IP68 Cable Gland for Electrical Wire Protection |
| Thread Specification | PG7 |
| Outside Diameter (OD) | 12.5mm |
| Panel Cutout Dimension | 12.5-12.7mm |
| Thread Length | 7mm |
| Customizable Thread Length | 10mm |
| Joint Length | 19mm |
IP68 Rated
Completely waterproof and dustproof for harsh environments.
Quick Installation
Simple plug-and-play design, no tools required.
Wide Temp Range
Stable performance from -40°C to +100°C.
V0 Flame Retardant
Meets UL94 V0 standard for enhanced safety.
What is the material?
High-quality Nylon (PA66) for durability and corrosion resistance.
Is it truly waterproof?
Yes, rated IP68 for complete protection against water and dust.
What cable sizes does it fit?
Compatible with cable diameters from 3mm to 6.5mm.
|
|
