방수 원형 연결 장치
>
M25T Port 2Pin Waterproof Connector 1 in 2 out Feed Through Splitter

M25T Port 2Pin Waterproof Connector 1 in 2 out Feed Through Splitter

브랜드 이름: Cablein
MOQ: 100pcs
가격: The price ranges from $1 to $4 USD per pieces
포장에 대한 세부 사항: 고품질 수출 상자
지불 조건: T/T, 서부 동맹
상세 정보
원래 장소:
중국 선전
인증:
CE, ROHS, TUV , ETL
방수 등급:
IP68
현재의:
최대 32A 전력용
샘플:
유료 견본
작동 온도:
-40C~105C
쉘 재료:
PA66
와이어 외경:
5-14mm
기계적 삶:
1000 번
모양:
둥근
공급 능력:
월간 출력 : 10,000 세트
강조하다:

IP68 Waterproof Circular Connector

,

32A Max Current M25T Connector

,

ROUND Shape Feed Through Splitter

제품 설명
M25T Port 2Pin Waterproof Connector 1 in 2 out Feed Through Splitter
M25TC 2-Port T-Shape IP68 Waterproof Connector 2-Core 1 In 2 Out
Specifications
Product Name M25T Port 2Pin Waterproof Connector 1 in 2 out Feed Through Splitter
Wiring Range 0.5mm² -4 mm²
Rated Current 3200mA
Operating Voltage 0.45KV
Ingress Protection (IP) Rating IP67/IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm 10-14mm
Key Advantages
  • System Simplification & Space Saving
    Compact 1-in-2-Out design simplifies wiring and saves crucial space by eliminating multiple bulky connectors and junction boxes. Ideal for compact control panels and enclosures.
  • Reliability in Harsh Environments
    IP67-rated seal guarantees total waterproof and dustproof protection, withstanding harsh conditions including driving rain, dust, oil, and temporary immersion.
  • Easy & Secure Installation
    Threaded M25 coupling ensures vibration-proof connection, preventing loosening under vibration or impact for long-term reliability in demanding applications.
  • Versatile & Durable Performance
    Industrial-grade PA66 nylon and corrosion-resistant materials offer excellent resistance to UV exposure, chemicals, and physical wear for reduced maintenance costs.

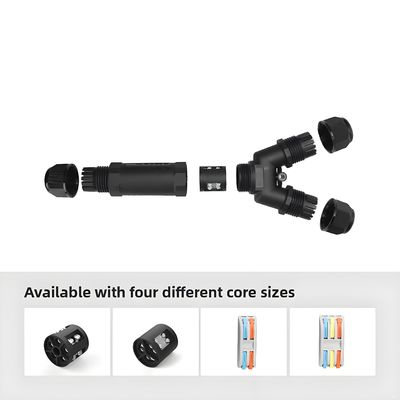

Product Images
M25T Port 2Pin Waterproof Connector 1 in 2 out Feed Through Splitter 0 M25T Port 2Pin Waterproof Connector 1 in 2 out Feed Through Splitter 1 M25T Port 2Pin Waterproof Connector 1 in 2 out Feed Through Splitter 2 M25T Port 2Pin Waterproof Connector 1 in 2 out Feed Through Splitter 3 M25T Port 2Pin Waterproof Connector 1 in 2 out Feed Through Splitter 4
Frequently Asked Questions
Q: What is the IP rating and what does it protect against?
A: It is rated IP67, meaning it's fully dust-tight and can withstand temporary immersion in water up to 1 meter deep.
Q: Is this connector suitable for outdoor or harsh industrial use?
A: Yes. Its IP67 waterproof seal, M25 threaded coupling for vibration resistance, and robust construction make it ideal for outdoor, automotive, and industrial environments.
Q: What is the main application of a 1-in-2-out feed through splitter?
A: It is designed to split a single power or signal source into two separate lines, simplifying wiring for applications like splitting LED light strips, powering two sensors from one cable, or creating distribution points.
