| 브랜드 이름: | Cablein |
| MOQ: | 100pcs |
| 가격: | The price ranges from $1 to $4 USD per pieces |
| 포장에 대한 세부 사항: | 고품질 수출 상자 |
| 지불 조건: | T/T, 서부 동맹 |
Installation Type: Wire-to-Wire
Connection Type: Screw Locking
Rating: IP68
Pin: 2
Waterproof Ring: 3.5-7mm 5-8mm 7-10mm
Applicable Wire Gauge: 0.5mm²-1.5mm²
Material: PA66
| Parameter | Specification |
|---|---|

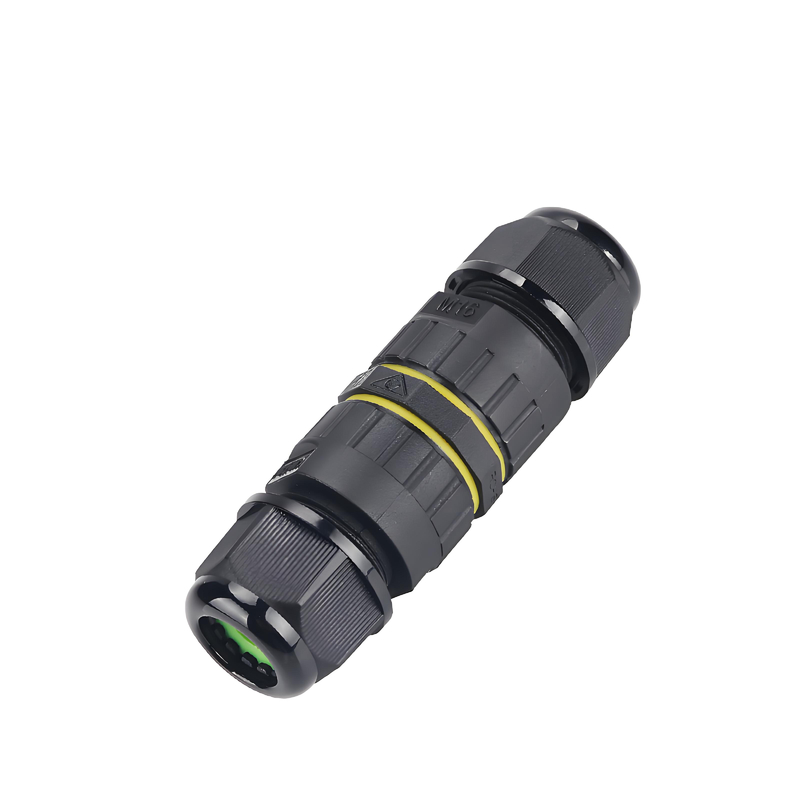

| Product Name | Waterproof Connector M16 2-Pin Straight Through IP68 Screw Locking |
| Wiring Range | 0.5mm² - 1.5 mm² |
| Rated Current | 17.5A |
| Operating Voltage | 450V |
| Ingress Protection (IP) Rating | IP67/IP68 |
| Ambient Temperature | -40℃ ~ +105℃ |
| Cable Diameter (OD) | 3.5-7mm 5-8mm 7-10mm |
The screw-locking mechanism prevents loosening under stress, guaranteeing a stable and reliable connection in high-vibration environments like machinery and vehicles.
Fully sealed against dust, dirt, and prolonged water submersion, this connector provides unwavering performance in harsh outdoor and industrial settings.
The intuitive in-line design allows for quick, tool-free mating, significantly reducing installation time and effort for cable-to-cable connections.
Featuring a standardized M16 threaded design and high-grade materials, this connector resists corrosion, impact, and mechanical wear for long-term use.
The IP68 rating ensures complete protection against dust and prolonged immersion in water, making it ideal for outdoor, industrial, and automotive applications.
It features a threaded coupling nut that, when hand-tightened, secures the connection against vibration and accidental disconnection.
This is a straight-through, in-line connector designed specifically for cable-to-cable connections.
|
|
