방수 원형 연결 장치

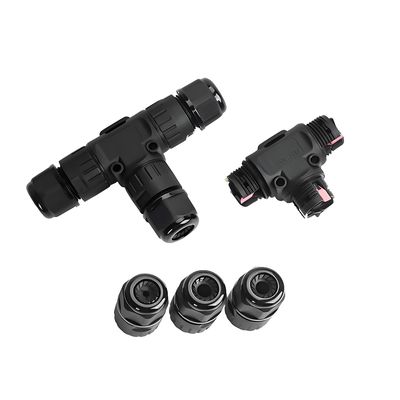

Waterproof Circular Connector 3Pin T-Type 1In2Out Fast Wiring for Industrial Equipment

모든 범주

방수 원형 연결 장치

방수 남자 암놈 커넥터

방수 전원 커넥터

내수 케이블 연결기

방수 신호 커넥터

방수 데이터 커넥터

RJ45 방수 커넥터

방수 패널 마운트 커넥터

방수 LED 커넥터

전원 플러그

문의하기

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

지금 접촉하세요

Waterproof Circular Connector 3Pin T-Type 1In2Out Fast Wiring for Industrial Equipment

브랜드 이름:	Cablein
MOQ:	100pcs
가격:	The price ranges from $1 to $4 USD per pieces
포장에 대한 세부 사항:	고품질 수출 상자
지불 조건:	T/T, 서부 동맹

상세 정보

제품 설명

상세 정보

원래 장소:

중국 선전

인증:

CE, ROHS, TUV , ETL

작동 온도:

-40 ° C ~ +105 ° C

케이블 길이:

귀하의 요구 사항에 따라

접속 모드:

플러그 /는 마개를 뽑습니다

접촉 자료:

금속

커넥터 유형:

퀵 커넥터

연결 방식:

푸쉬락

인증:

CE, ROHS

정격전압:

250V AC.DC

공급 능력:

월간 출력 : 10,000 세트

강조하다:

3Pin Circular Connector

1In2Out Waterproof Cable Connector

PA66 T-Type Connector

제품 설명

Waterproof Cable Connector P20T 3Pin T-Type IP68 1In2Out Fast Wiring for Industrial Equipment

This industrial-grade waterproof connector features a T-type design with IP68 protection, quick-connect terminals, and rugged construction for reliable performance in harsh environments.

Specifications

Installation Type	Wire-to-Wire
Connection Type	Quick Connect
Rating	IP68
Material	PA66
Waterproof Ring	5-9mm 9-12mm
Applicable Wire Gauge	0.5mm²-2.5mm²
Pin	3

Technical Parameters

Product Name	Waterproof Cable Connector P20T 3Pin T-Type IP68 1In2Out Fast Wiring for Industrial Equipment
Wiring Range	0.5 - 2.5 mm²
Rated Current	24A Max
Operating Voltage	250V Max
Ingress Protection (IP) Rating	IP67 /IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-9mm 9-12mm

Key Advantages

Superior IP68 Protection Unmatched reliability in harsh environments with complete dust-tight protection and ability to withstand continuous submersion in water beyond 1 meter.

Effortless Fast Wiring Quick-connect terminal design eliminates need for complex tools or soldering, reducing installation time and labor costs.

Rugged T-Type Structure Robust 1-in-2-out design provides superior mechanical strength to resist impact, pulling, and environmental stress while ensuring stable signal transmission.

Industrial-Grade Resilience High-quality materials resist corrosion, weathering, and extreme temperatures (-40℃ to +105℃) for long-term durability in industrial settings.

Product Images

Frequently Asked Questions

What is the level of waterproof protection for this connector?

It has an IP68 rating, meaning it is completely dust-tight and can be continuously submerged in water beyond 1 meter, offering excellent protection for outdoor and harsh environments.

Is any special tool required for the wiring installation?

No. It features a fast-wiring (push-in or screw-clamp) design that allows for quick and secure cable connection without the need for soldering or complex tools.

What is the main application of the 1-in-2-out design?

This T-type design is ideal for creating a secure power or signal branch from a single source to two devices, simplifying wiring in control cabinets, lighting arrays, and sensor networks.

태그:
