방수 원형 연결 장치

P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage

모든 범주

방수 원형 연결 장치

방수 남자 암놈 커넥터

방수 전원 커넥터

내수 케이블 연결기

방수 신호 커넥터

방수 데이터 커넥터

RJ45 방수 커넥터

방수 패널 마운트 커넥터

방수 LED 커넥터

전원 플러그

문의하기

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

지금 접촉하세요

P25 Waterproof Circular Connector with 0.5mm²-2.5mm² Wire Gauge 1600mA Rated Current and 0.45KV Operating Voltage

브랜드 이름:	Cablein
MOQ:	100pcs
가격:	The price ranges from $1 to $4 USD per pieces
포장에 대한 세부 사항:	고품질 수출 상자
지불 조건:	T/T, 서부 동맹

상세 정보

제품 설명

상세 정보

원래 장소:

심천 중국

인증:

CE, ROHS, TUV , ETL

보호 등급:

IP65 -IP68

커넥터 유형:

회보

온도 범위:

-40°C~+105°C

기준:

삽입 수명:

1000 번

샘플:

유료 견본

공급 능력:

월간 출력 : 10,000 세트

강조하다:

0.5mm²-2.5mm² Wire Gauge P25 Connector

1600mA Rated Current Waterproof Circular Connector

0.45KV Operating Voltage Quick-Connect In-Line Connector

제품 설명

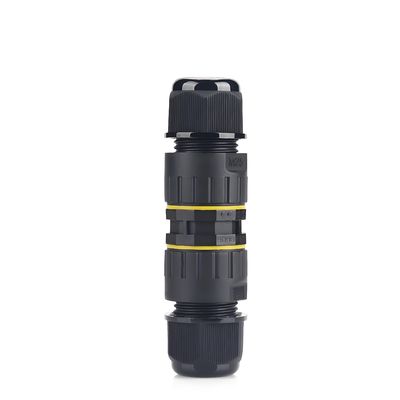

Waterproof Connector P25 5-Pin IP67 Quick-Connect In-Line

The Waterproof Connector P25 features a 5-pin IP67 quick-connect design for reliable in-line wire-to-wire connections in demanding environments.

Specifications

Connection Type: Quick Connect
Installation Type: Wire-to-Wire
Pin: 5
Material: PA66
Applicable Wire Gauge: 0.5mm²-2.5mm²
Waterproof Ring: 5-9mm 9-12mm 10-14mm
Rating: IP68

Technical Parameters

Parameter	Specification
Product Name	Waterproof Connector P25 5-Pin IP67 Quick-Connect In-Line
Wiring Range	0.5 - 2.5 mm²
Rated Current	1600mA
Operating Voltage	0.45KV
Ingress Protection (IP) Rating	IP66/IP67/IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-14mm

Key Advantages

IP68 Rated for Dust & Water Protection: Complete protection against dust ingress and reliable operation when submerged, ideal for harsh environments.
Tool-Free Quick-Connect Operation: Simple push-and-lock design enables fast installation without tools.
5-Pin Design for Versatile Applications: Simultaneously transmits power, signals, and data in a single connection for complex systems.
Durable In-Line Construction: Robust design ensures long-term reliability in demanding applications.

Product Images

Frequently Asked Questions

What is the IP68 rating?

The IP68 certification guarantees the connector is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

How does the quick-connect mechanism work?

It features a simple push-and-lock design that allows for secure mating and disconnection without any tools.

What wire gauges are compatible?

It is designed to accommodate standard wire gauges, with a common range of up to 18 AWG for flexible and reliable wiring.
