| 브랜드 이름: | Cablein |
| MOQ: | 100pcs |
| 가격: | The price ranges from $1 to $4 USD per pieces |
| 포장에 대한 세부 사항: | 고품질 수출 상자 |
| 지불 조건: | T/T, 서부 동맹 |
Connection Type: Quick Connect
Installation Type: Wire-to-Wire
Pin: 2
Material: PA66
Applicable Wire Gauge: 0.5mm²-2.5mm²
Waterproof Ring: 5-9mm 9-12mm
Rating:IP68
| Parameter | Specification |
|---|---|

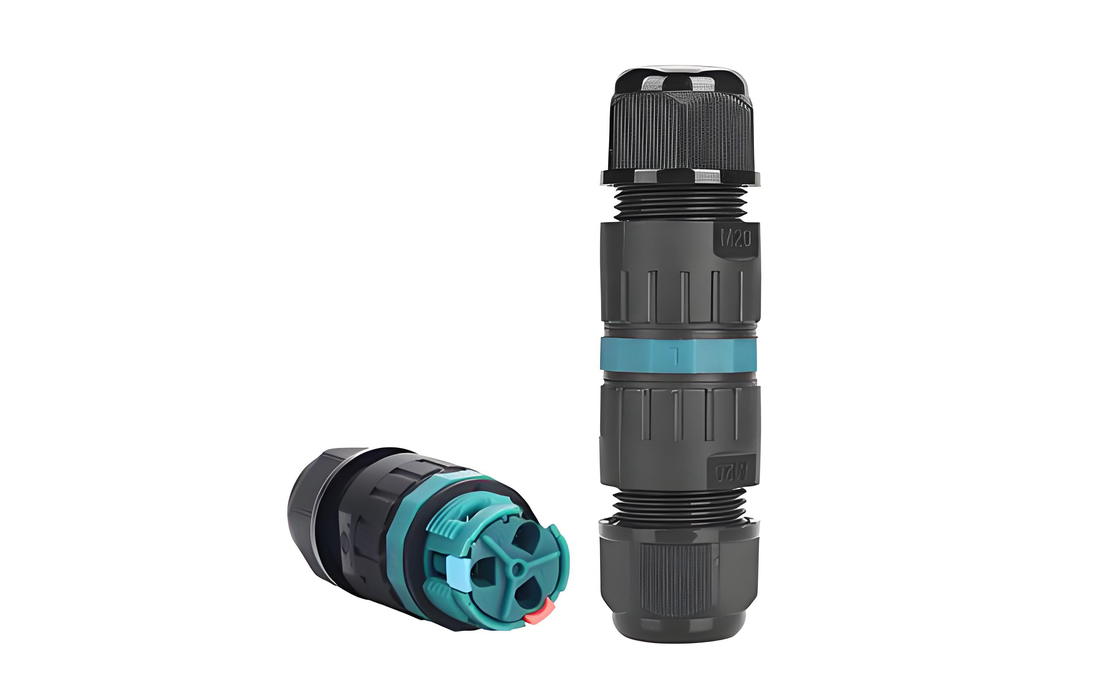

| Product Name | Waterproof IP68 In-Line Quick Connector, P20 Series, 2-Position |
| Wiring Range | 0.5 - 2.5 mm² |
| Rated Current | 1600mA |
| Operating Voltage | 450V |
| Ingress Protection (IP) Rating | IP66/IP67 /IP68 |
| Ambient Temperature | -40℃ ~ +105℃ |
| Cable Diameter (OD) | 5-12mm |
A: The IP68 rating guarantees complete protection against dust ingress (IP6X) and the ability to withstand continuous immersion in water under specified conditions, typically beyond 1 meter depth for an extended period. This makes it ideal for harsh outdoor or wash-down environments.
A: No special tools are required. The connector is designed for a quick, tool-free push-pull locking mechanism, enabling fast and secure connections in the field, saving time and labor costs.
A: This connector is rated for [Please insert your specific values, e.g., 16A or 250V], ensuring robust performance for a wide range of industrial power and signal applications.
A: It features a wide operating temperature range of [Please insert your specific values, e.g., -40°C to +85°C], ensuring stable performance and reliability in extreme hot or cold conditions.
A: While optimized for performance within the P20 series, it is designed to standard specifications. We recommend consulting our detailed cable compatibility sheet to ensure optimal sealing and mechanical strength.
A: Its IP68 rating and robust design make it a perfect solution for industrial automation, outdoor LED lighting, heavy-duty machinery, agricultural equipment, and any application exposed to moisture, dust, or vibrations.
|
|
