방수 원형 연결 장치

M23 Series Waterproof Circular Connector with 30A Current Rating 100% Dustproof and UL94 V-0 Flame Resistance

모든 범주

전원 플러그

문의하기

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

지금 접촉하세요

M23 Series Waterproof Circular Connector with 30A Current Rating 100% Dustproof and UL94 V-0 Flame Resistance

브랜드 이름:	Cablein
MOQ:	100pcs
가격:	The price ranges from $1 to $4 USD per pieces
포장에 대한 세부 사항:	고품질 수출 상자
지불 조건:	T/T, 서부 동맹

상세 정보

제품 설명

상세 정보

원래 장소:

심천 중국

인증:

CE, ROHS, TUV , ETL

현재 등급:

30A

더스트 스프 루프:

100% 더스트 스프 루프

보호 수준:

IP68

절연 저항:

≥1000mΩ

연결방식:

빠른 연결

접지:

표준 접지

정격전압:

450V

불꽃 저항 등급:

UL94 V-0

공급 능력:

월간 출력 : 10,000 세트

강조하다:

30A Current Rating Waterproof Circular Connector

100% Dustproof M23 Series Connector

UL94 V-0 Flame Resistance Quick Push-Pull Connector

제품 설명

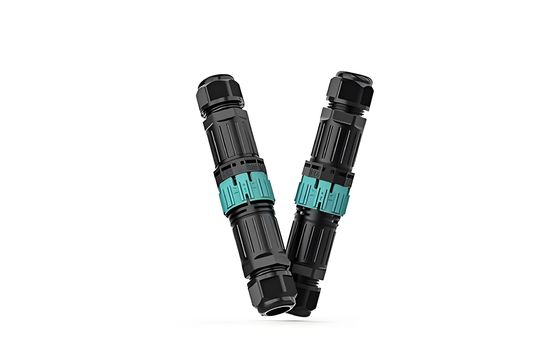

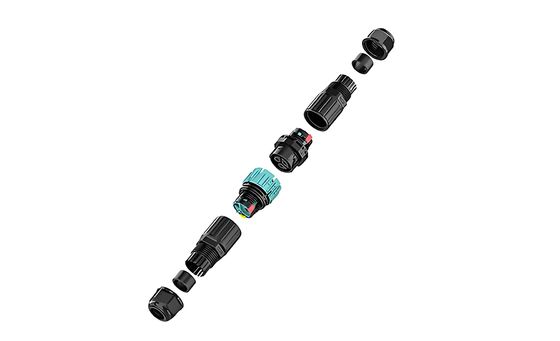

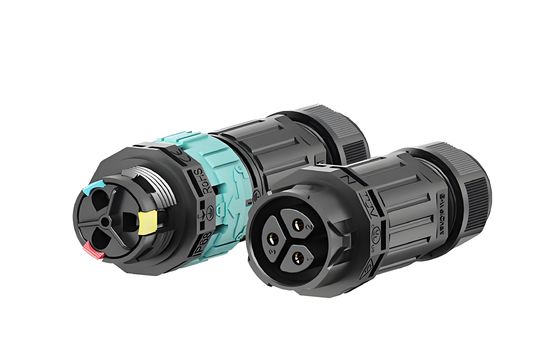

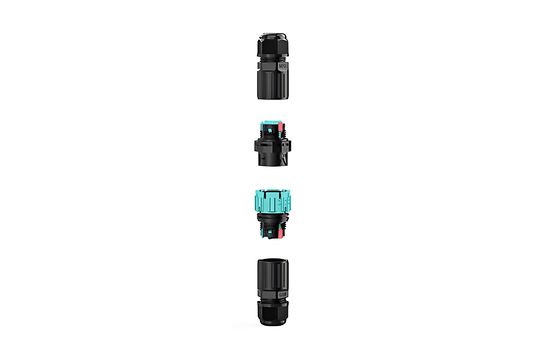

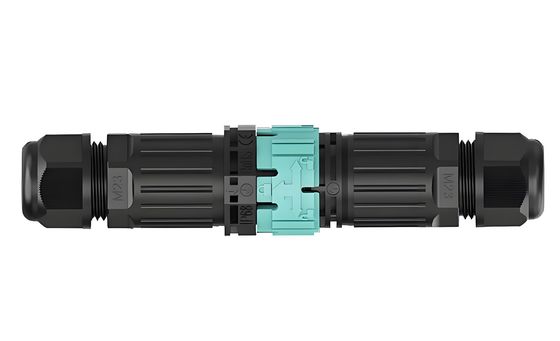

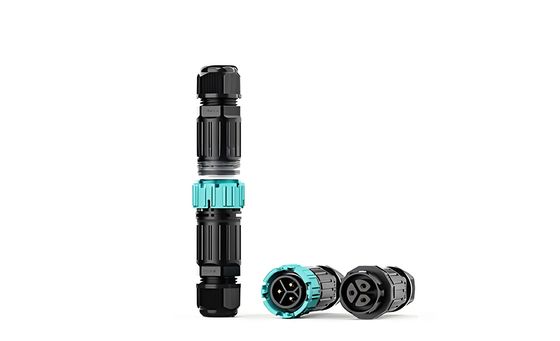

M23 Series Waterproof Connector, Quick Push-Pull Locking, Male & Female

The M23 Series Waterproof Connector features a quick push-pull locking mechanism for secure connections in demanding environments. Designed for industrial applications, it offers reliable performance with IP68 waterproof rating.

Key Specifications

Connection Type	Quick-Connect
Installation Type	Wire-to-Wire
Pin Configuration	3
Material	PA66
Applicable Wire Gauge	0.5mm²-2.5mm²
Waterproof Ring	5-7mm
Rating	IP68

Technical Parameters

Product Name	M23 Series Waterproof Connector, Quick Push-Pull Locking, Male & Female
Wiring Range	4/5P 0.5 - 2.5 mm² 2/3P 0.5 - 4mm²
Rated Current	2/3P 30A 4/5P 15A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-9mm 9-12mm

Product Advantages

Quick Push-Pull Locking: Secure mating with easy disconnection
IP68 Waterproof: Fully protected against water and dust ingress
Rugged Design: Built to withstand harsh industrial environments
Reliable Connection: Ensures stable electrical performance

Typical Applications

Outdoor Surveillance System Connection Solutions

LED Plant Growth Light Solution

Frequently Asked Questions

What is the IP rating of this connector?

IP68-rated, fully waterproof and dustproof.

How does the locking mechanism work?

Features quick push-pull locking for secure mating and easy disconnection.

Is it available in different pin configurations?

Yes, the M23 series offers various pin counts to meet different application needs.

What materials is the connector made from?

Constructed with robust metal shell and high-quality seals for durability.

Can it withstand harsh environments?

Yes, resistant to water, dust, vibration, and suitable for industrial use.

Are mating connectors included?

Sold as matched male and female pairs for complete connectivity.
