Waterproof M20 Screw-Locking Connector 1-3 Port IP67 for Power and Signal Distribution with PA66 Material and 0.5mm²-2.5mm² Wire Gauge

모든 범주

전원 플러그

문의하기

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

지금 접촉하세요

Waterproof M20 Screw-Locking Connector 1-3 Port IP67 for Power and Signal Distribution with PA66 Material and 0.5mm²-2.5mm² Wire Gauge

브랜드 이름:	Cablein
MOQ:	100pcs
가격:	The price ranges from $1 to $4 USD per pieces
포장에 대한 세부 사항:	고품질 수출 상자
지불 조건:	T/T, Western Union

상세 정보

제품 설명

상세 정보

원래 장소:

심천 중국

인증:

CE, ROHS, TUV , ETL

작동 온도:

105' Ｃ에 대한 -40' Ｃ

와이어 외경:

5-12mm

케이블 유형:

코아시얼/틀린 쌍

스타일:

나사

절연 저항:

≥1000mΩ

짝짓기 스타일:

남성과 여성

작동 전압:

450V

핀 수:

3개 핀

공급 능력:

월간 출력 : 10,000 세트

강조하다:

1-3 Port Waterproof Circular Connector

PA66 M20 Screw-Locking Connector

0.5mm²-2.5mm² IP67 Junction Box

제품 설명

Waterproof M20 3Pin Screw-Locking Connector 1-3 Port IP67 for Power and Signal Distribution

This waterproof M20 3-pin screw-locking connector provides reliable power and signal distribution with IP67 protection for harsh industrial environments.

Key Specifications

Parameter	Specification
Connection Type	Screw-Locking
Installation Type	Wire-to-Wire
Pin Configuration	3
Material	PA66
Applicable Wire Gauge	0.5mm²-2.5mm²
Waterproof Ring	5-9mm / 9-12mm
Rating	IP67

Technical Parameters

Parameter	Specification
Wiring Range	0.5 - 2.5 mm²
Rated Current	24A
Operating Voltage	450V
Ingress Protection (IP) Rating	IP67
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-12mm

Product Advantages

Harsh Environment Protection: IP67 rating ensures reliable operation against dust and water immersion in industrial settings.
Vibration-Proof Connection: Screw-locking mechanism prevents loosening from vibration or accidental pulls.
Space-Saving Design: 1-to-3 distribution efficiently splits incoming cables while reducing clutter.
Versatile Application: Suitable for both power and signal control tasks in automation systems.

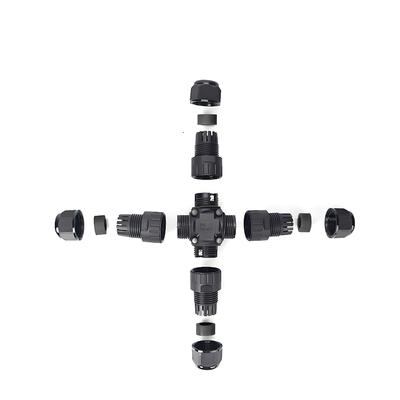

Product Images

Frequently Asked Questions

What does the IP67 rating mean for this connector in practical use?

The IP67 rating ensures complete protection against dust ingress and allows temporary submersion in water up to 1 meter deep for 30 minutes, making it ideal for washdown areas or dusty industrial environments.

Can this 1-in-3-out connector be used for both power and signal simultaneously?

The connector is a passive junction box where the 3 pins can carry electrical circuits. Configuration depends on your wiring setup. Always consult the product datasheet to ensure voltage and current ratings are not exceeded.

How does the screw-locking mechanism enhance reliability?

The screw-locking provides a robust, vibration-proof connection that prevents accidental disconnection from machine vibration or cable strain, essential for automated machinery.

What is the maximum current and voltage rating for each pin?

Standard ratings are typically 4-8 Amps per pin and up to 250V AC/DC, but always refer to the official technical datasheet for your specific model.

What cable outer diameter (OD) is suitable for this connector?

The integrated cable gland accommodates diameters from 5mm to 12mm. Using cables within this range is vital to achieve the IP67 seal and proper strain relief.

Is this connector compatible with standard M20 connectors from other brands?

It follows international M20 threading standards for mechanical compatibility, but electrical compatibility (pin assignment and spacing) should be verified with your existing equipment.
