| 브랜드 이름: | Cablein |
| 모델 번호: | CB-M2068-5T |
| MOQ: | 100pcs |
| 가격: | The price ranges from $1 to $4 USD per pieces |
| 포장에 대한 세부 사항: | 고품질 수출 상자 |
| 지불 조건: | T/T, Western Union |
Connection Type: Screw-Type
Type: 1-in-3-out
Material: Plastic
Applicable Wire Gauge: 0.5mm²-6mm²
Outer Diameter (OD): 2*M20:5-9mm 9-12mm,M16:3.5-7mm 7-10mm
P/N : CB-2068-4TA
| Parameter | Specification |
|---|---|

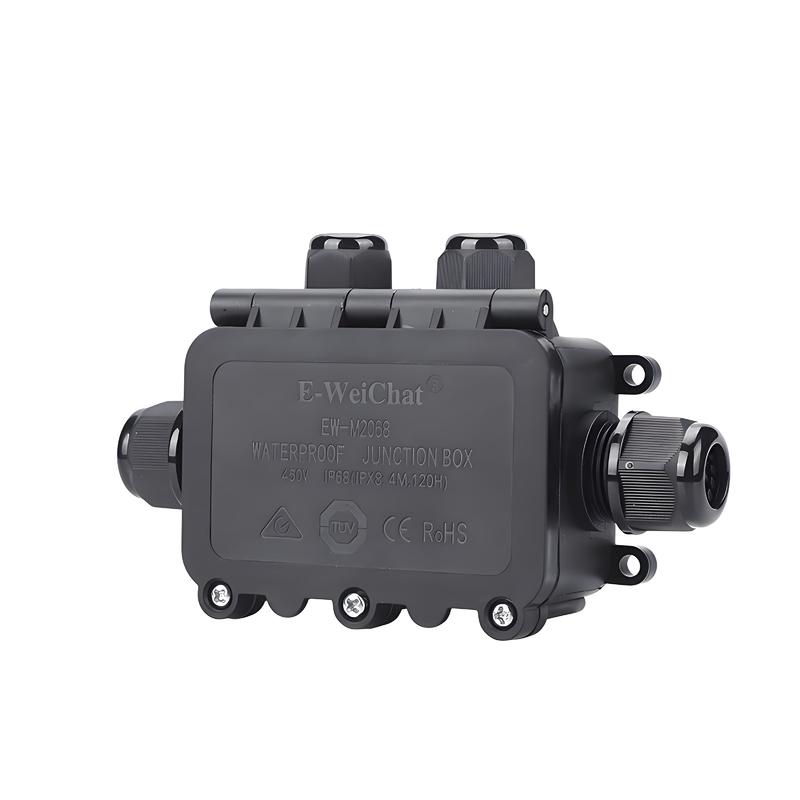

| Product Name | 2T/3T/4TA/4TB/5T/6T Junction Box |
| Wiring Range | 0.5 - 6 mm² |
| Rated Current | 40A |
| Operating Voltage | 450V |
| Ingress Protection (IP) Rating | IP67 /IP68 |
| Ambient Temperature | -40℃ ~ +105℃ |
| Cable Diameter (OD) | 2*M20:5 - 9 mm, 9 - 12 mm,M16:3.5-7mm 7-10mm |
| Connector Size | 2*M25/1*M20,2*M25/2*M20,2*M25/3*M20,2*M25/4*M20,2*M25 |
Fully sealed against dust and continuous submersion in water, ensuring reliable performance in harsh outdoor and industrial environments.
Rugged housing resists corrosion, impact, and UV exposure, providing long-lasting durability and equipment safety.
Simplifies cable management by allowing direct feed-through, reducing installation time and minimizing connection points.
Features integrated cable glands and a compact layout for organized, strain-relieved, and maintenance-free wiring.
A: It offers the highest level of protection: completely dust-tight (6) and can withstand continuous immersion in water beyond 1 meter (8).
A: Yes. The combination of IP68 rating, corrosion-resistant die-cast aluminum, and UV resistance makes it ideal for harsh outdoor applications.
A: The box uses integrated compression cable glands (included) that create a tight, waterproof seal around the cables when tightened.
A: Absolutely. The direct through-wire design allows a single input cable to pass through seamlessly for easy daisy-chaining to other boxes or devices.
|
|
