| 브랜드 이름: | Cablein |
| 모델 번호: | CB-M2068-5T |
| MOQ: | 100pcs |
| 가격: | The price ranges from $1 to $4 USD per pieces |
| 포장에 대한 세부 사항: | 고품질 수출 상자 |
| 지불 조건: | T/T, Western Union |
Connection Type: Screw-Type
Type: 1-in-4-out
Material: Plastic
Applicable Wire Gauge: 0.5mm²-6mm²
Outer Diameter (OD): 2*M20:5-9mm 9-12mm,M16:3.5-7mm 7-10mm
P/N : CB-M2068-5T
| Parameter | Specification |
|---|---|
| Product Name | 2T/3T/4TA/4TB/5T/6T Junction Box |
| Wiring Range | 0.5 - 6 mm² |
| Rated Current | 4000MA |
| Operating Voltage | 0.45KV |
| Ingress Protection (IP) Rating | IP67 IP68 |
| Ambient Temperature | -40℃ ~ +105℃ |
| Cable Diameter (OD) | 2*M20:5 - 9 mm, 9 - 12 mm,M16:3.5-7mm 7-10mm |
| Connector Size | 2*M25/1*M20,2*M25/2*M20,2*M25/3*M20,2*M25/4*M20,2*M25 |

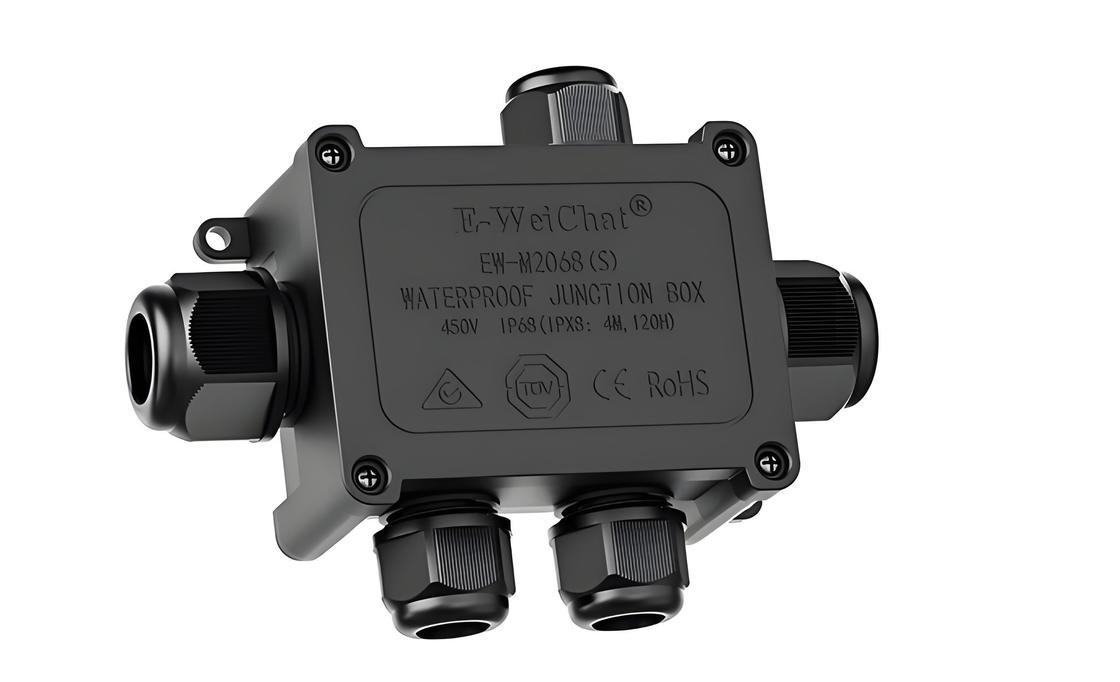

A: This junction box is rated IP68, the highest common ingress protection rating. It is completely dust-tight (6) and can withstand continuous submersion in water up to 1.5 meters deep for 30 minutes (8). This ensures flawless performance in heavy rain, snow, or even accidental submersion outdoors.
A: It features an integrated 1-in-4-out design, meaning it can efficiently organize and split one main cable into four separate outputs. The product includes multiple cable gland entry points with standard sizes (e.g., PG7, PG9, PG11) to accommodate a wide range of cable diameters, ensuring a secure and waterproof seal for each connection.
A: While the IP68 rating makes it highly resistant to water and dust, we recommend installing it in a above-ground or partially protected location (e.g., mounted on a wall or post). For direct burial, additional protective measures like a concrete enclosure or conduit may be necessary to prevent physical damage from soil pressure and shifting over time.
|
|
