방수 원형 연결 장치

LP20 Series 9-Pin IP67 Waterproof Connector 5A Flange Mount

모든 범주

전원 플러그

문의하기

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

지금 접촉하세요

LP20 Series 9-Pin IP67 Waterproof Connector 5A Flange Mount

브랜드 이름:	Cablein
MOQ:	100pcs
가격:	The price ranges from $1 to $4 USD per pieces
포장에 대한 세부 사항:	고품질 수출 상자
지불 조건:	T/T, Western Union

상세 정보

제품 설명

상세 정보

원래 장소:

심천 중국

인증:

CE, ROHS, TUV , ETL

종료 스타일:

솔더

접촉 자료:

금도금 황동

불꽃 저항 등급:

UL94 V-0

전압 등급:

250V

방수 수준:

IP 67

케이블 유형:

차폐/차폐

현재 등급:

작동 온도:

-40 ° C ~ 85 ° C

강조하다:

9-pin waterproof circular connector

IP67 rated flange-mount connector

5A signal power waterproof connector

제품 설명

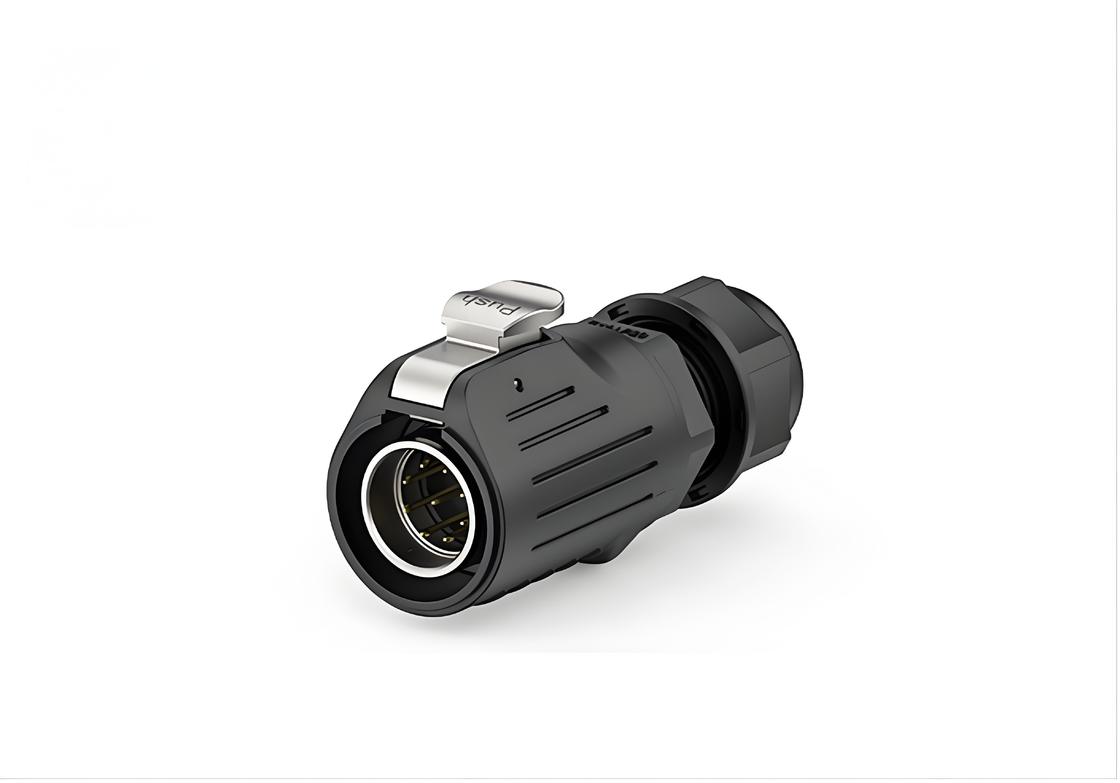

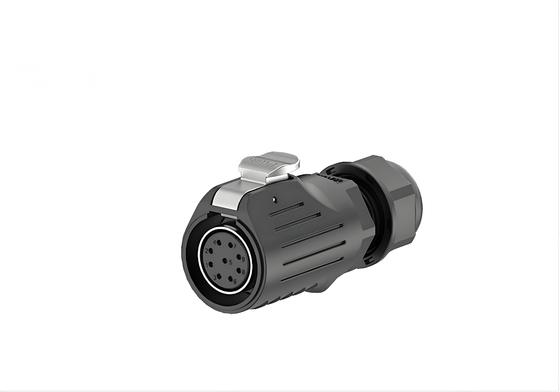

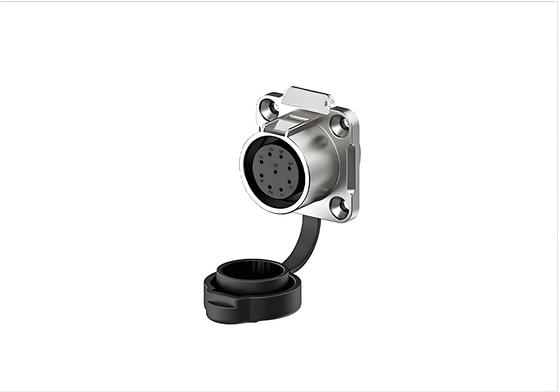

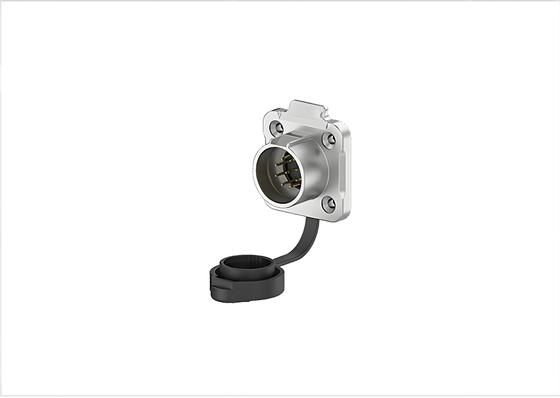

LP20 Series, 9-Pin, Flange-Mount, 5A Signal & Power Waterproof Connector - IP67 Rated, Metal/Plastic Hybrid, Solder Terminations

Specifications

Pin: 9 Pin
Current Rating(A): 5A Max
Material: Metal+plastic
Conenction Way: Push-button snap fastener
Operating Voltage: 250V Max
Assembly Wire: IP-Rated Locking Gland
Mounting Type: Flange Mounting Type
Out Door UV Resistance: Pass
Cable Jacket OD: 0.34-0.75 mm²

Datasheet

Pins Number	2Pins	5Pins	9Pins
Rated Voltage	500V		250V
Rated Current	20A	10A	5A
Insulation voltage	2.5KV	1.5KV
IP CODE	IP68
Cable Jacket OD	Standard Power:⌀8-12mm Standard Signal:⌀5-6.5mm Other:⌀5-9mm
Assembly cable diameter	2.4-4mm²/14-12AWG	1-1.5mm²/18-16AWG	0.34-0.75mm²/22-20AWG
Ambient temperature	-40℃~+80℃

Advantages

Material & Performance:
The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
Secure Locking Mechanism:
Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
Waterproof Design:
Standard IP67 rating (IP68 optional) provides precise waterproof protection.
Certifications & Compliance:
Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.

Application Industries

Automation Equipment
LED Lighting
Security Equipment
Telecommunication Equipment
New Energy
Electronic Devies

Product Images

Drawing

FAQ

Q: What level of environmental protection does this IP67-rated connector provide, and where is it suitable for use?

A: Our LP20 connector's IP67 rating certifies complete protection against dust ingress (the "6") and the ability to withstand temporary immersion in water up to 1 meter for 30 minutes (the "7"). This makes it an ideal solution for demanding applications such as industrial automation, outdoor lighting, marine equipment, agricultural machinery, and any environment exposed to moisture, dust, rain, or wash-downs.

Q: Why does the connector use a hybrid metal and plastic design, and what are the benefits?

A: The hybrid design strategically combines the best properties of both materials. The metal shell (typically the flange and locking ring) provides superior mechanical strength, shielding against EMI/RFI interference, and durability against impacts and crushing. The plastic housing is lightweight, highly resistant to corrosion from salts and chemicals, and provides excellent electrical insulation. This combination ensures a robust, reliable, and long-lasting connector without the full weight and cost of an all-metal unit.

Q: Is this connector suitable for both power and signal transmission, and what is the maximum current rating?

A:Yes, absolutely. This is a key feature of the LP20 series. It is engineered to handle both signal transmission (for data, sensors, control signals) and power delivery simultaneously within a single, compact connector. Each pin is rated for up to 5A, making it capable of powering devices like small motors, sensors, actuators, and LED arrays, while also transmitting data, simplifying your system design and reducing the need for multiple separate connectors.
