| 브랜드 이름: | Cablein |
| MOQ: | 100pcs |
| 가격: | The price ranges from $1 to $4 USD per pieces |
| 포장에 대한 세부 사항: | 고품질 수출 상자 |
| 지불 조건: | T/T, Western Union |
| Pins Number | 2Pins | 3Pins | 4Pins | 5Pins | 7Pins | 9Pins | 12Pins |
|---|---|---|---|---|---|---|---|
| Rated Voltage | 500V | 250V | |||||
| Rated Current | 20A | 10A | 5A | ||||
| Insulation voltage | 2.5KV | 1.5KV | |||||
| IP CODE | IP68 | ||||||
| Cable Jacket OD | Standard Power:⌀8-12mm Standard Signal:⌀5-6.5mm Other:⌀5-9mm | ||||||
| Assembly cable diameter | 2.4-4mm²/14-12AWG | 1-1.5mm²/18-16AWG | 0.34-0.75mm²/22-20AWG | ||||
| Ambient temperature | -40℃~+80℃ | ||||||

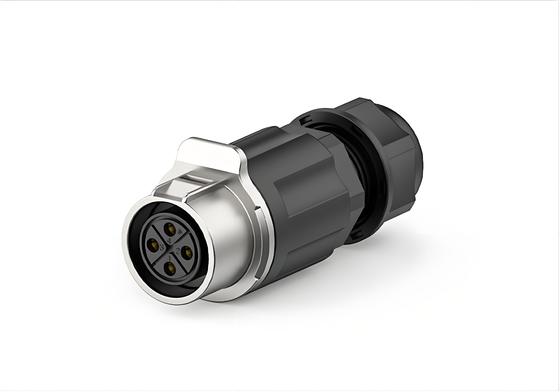

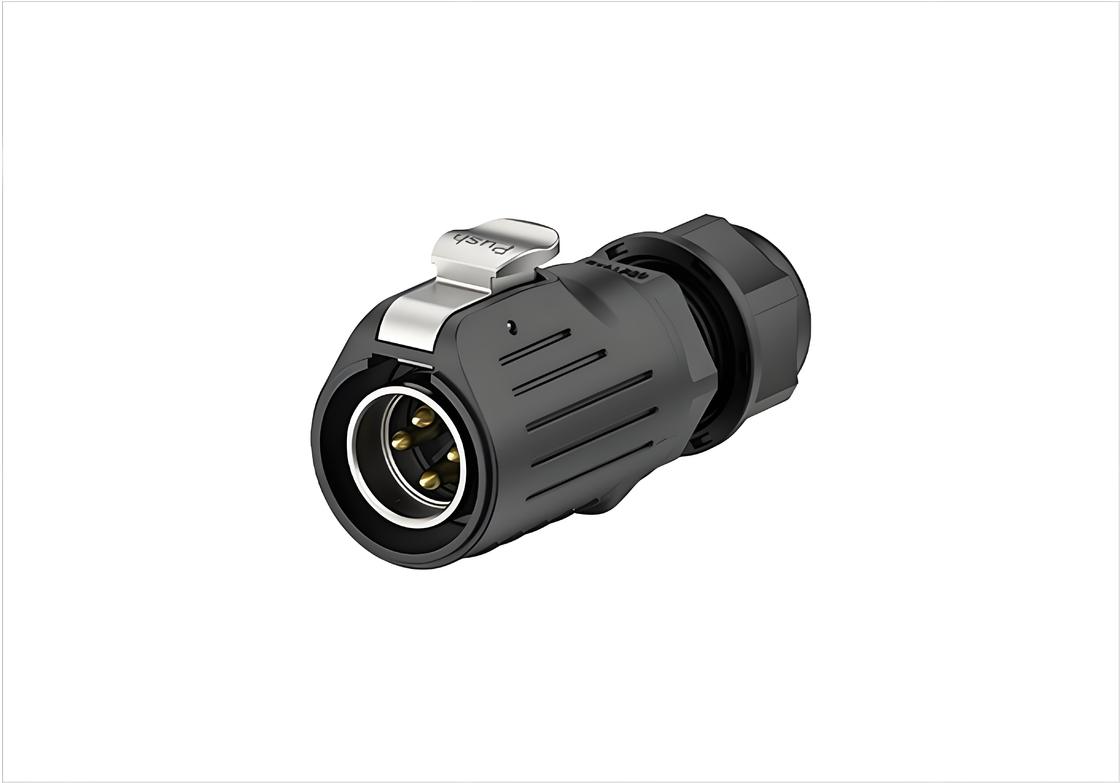

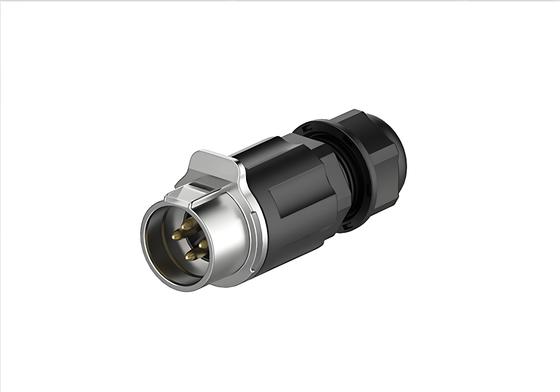

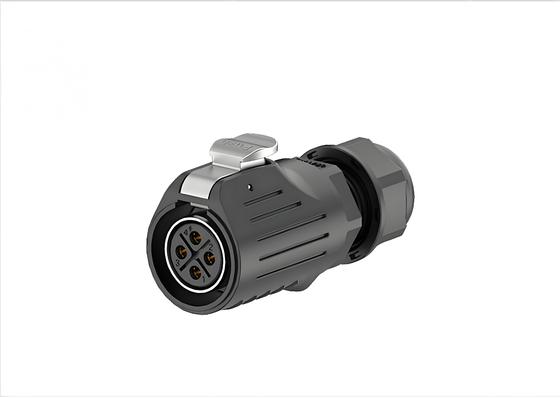

The LP20 series connector features a robust IP67 rating when fully mated. This means it is completely protected against dust ingress and can withstand immersion in water up to 1 meter deep for 30 minutes. It is ideal for demanding environments such as outdoor lighting, industrial automation, agricultural machinery, and any application exposed to rain, moisture, or dust.
The hybrid metal and plastic construction offers the perfect balance of durability and performance. The metal components (typically the shell and screw threads) provide superior mechanical strength, shielding, and resistance to crushing or impact. The plastic components ensure excellent corrosion resistance, electrical insulation, and weight reduction, making it resilient in harsh chemical or saline environments.
The soldering termination provides a permanent, highly reliable, and gas-tight connection that is excellent for resisting vibration and preventing corrosion over time. It is a preferred method for high-current applications like this 20A power line. While this specific model is the soldering type, the LP20 series may also be available in crimping versions. Please check the product datasheet or contact our sales team to confirm available termination options for your needs.
|
|
