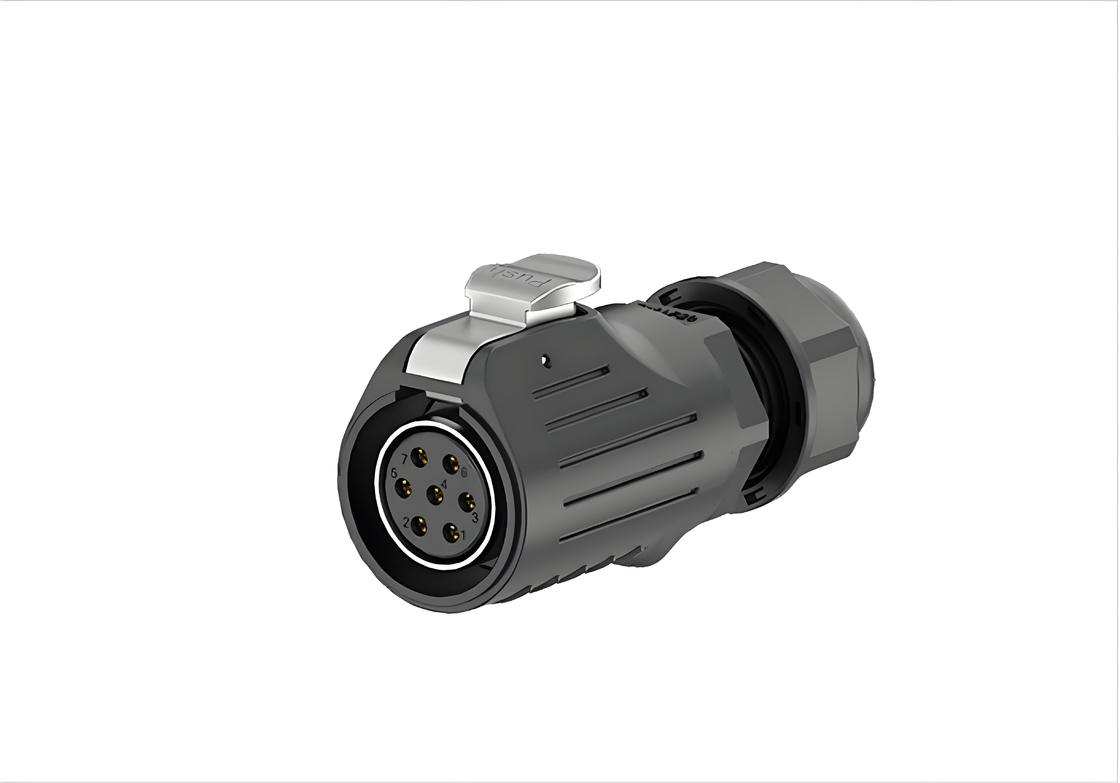

LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief
  • 이름
  • 이름
  • 이름
  • 이름

LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief

브랜드 이름: Cablein
MOQ: 100PCS
가격: The price ranges from $1 to $4 USD per pieces
포장에 대한 세부 사항: High Quality export carton
지불 조건: T/T,Western Union
상세 정보
제품 설명
상세 정보
Place of Origin:
Shenzhen China
인증:
CE, ROHS, TUV , ETL
Name:
LP20-7P In-Line Waterproof Connector, 7 Pin 10A, IP67 Rated with Strain Relief Boot
Current:
10A
Voltage:
100V
Mechnical Life:
≥1000 times
Material:
Metal + Plastic
Flame Resistance Rating:
UL94 V-0
Supply Ability:
Sufficient supply capacity
제품 설명
LP20-7P In-Line Waterproof Connector, 7 Pin 10A, IP67 Rated with Strain Relief Boot
Product Specifications
Attribute Value
Current 10A
Voltage 100V
Mechanical Life ≥1000 times
Material Metal + Plastic
Flame Resistance Rating UL94 V-0
Key Features
  • 7-pin configuration with 10A current rating
  • Push-button snap fastener connection
  • Operating voltage up to 500V
  • IP-Rated locking gland for secure cable assembly
  • Panel mounting type
  • Outdoor UV resistance
  • Cable jacket OD: 1-1.5 mm²
Technical Specifications
Parameter Value
Rated Voltage 500V | 250V
Rated Current 20A | 10A | 5A
Insulation Voltage 2.5KV | 1.5KV
IP Rating IP68
Cable Jacket OD Standard Power: ⌀8-12mm
Standard Signal: ⌀5-6.5mm
Other: ⌀5-9mm
Ambient Temperature -40℃ to +80℃
Product Advantages
  • Material & Performance: High-performance PBT engineering plastic housing with gold-plated conductive components for stable electrical properties and excellent heat/corrosion resistance.
  • Secure Locking Mechanism: Push-to-lock snap-fit design ensures secure mating and smooth operation.
  • Waterproof Design: IP67 rating (IP68 optional) provides reliable waterproof protection.
  • Certifications: Complies with TUV, ISO, CE, and RoHS standards for global market requirements.
Product Images
LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief 0 LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief 1 LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief 2 LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief 3 LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief 4 LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief 5 LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief 6
Application Industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devices
Technical Drawings
LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief 7 LP20-7P Waterproof Connector 7 Pin 10A IP67 with Strain Relief 8
Frequently Asked Questions
What does the IP67 rating mean for this connector?
The IP67 rating is an international protection standard. The '6' indicates complete protection against dust, while '7' means the connector can withstand immersion in water up to 1 meter deep for 30 minutes. This makes it ideal for outdoor use, harsh environments, or applications with exposure to liquids.
Can the 7 pins be used for both power and signals simultaneously?
Yes, the 7-pin design offers excellent versatility. You can configure some pins for power transmission (rated at 10A) while using others for signal transmission. Always consult the technical datasheet for specific voltage ratings to ensure suitability for your application.
What is the purpose of the Strain Relief Boot?
The Strain Relief Boot is essential for durability and reliability. It prevents cable pull-out, protects against excessive bending, and extends service life by absorbing physical tension and vibration. Highly recommended for applications involving movement or rough handling.
태그:

물 저항 원형 커넥터

남성 및 여성 연결 장치

순환 케이블 커넥터
