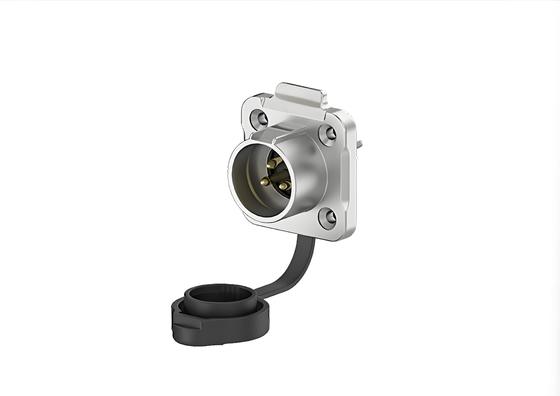

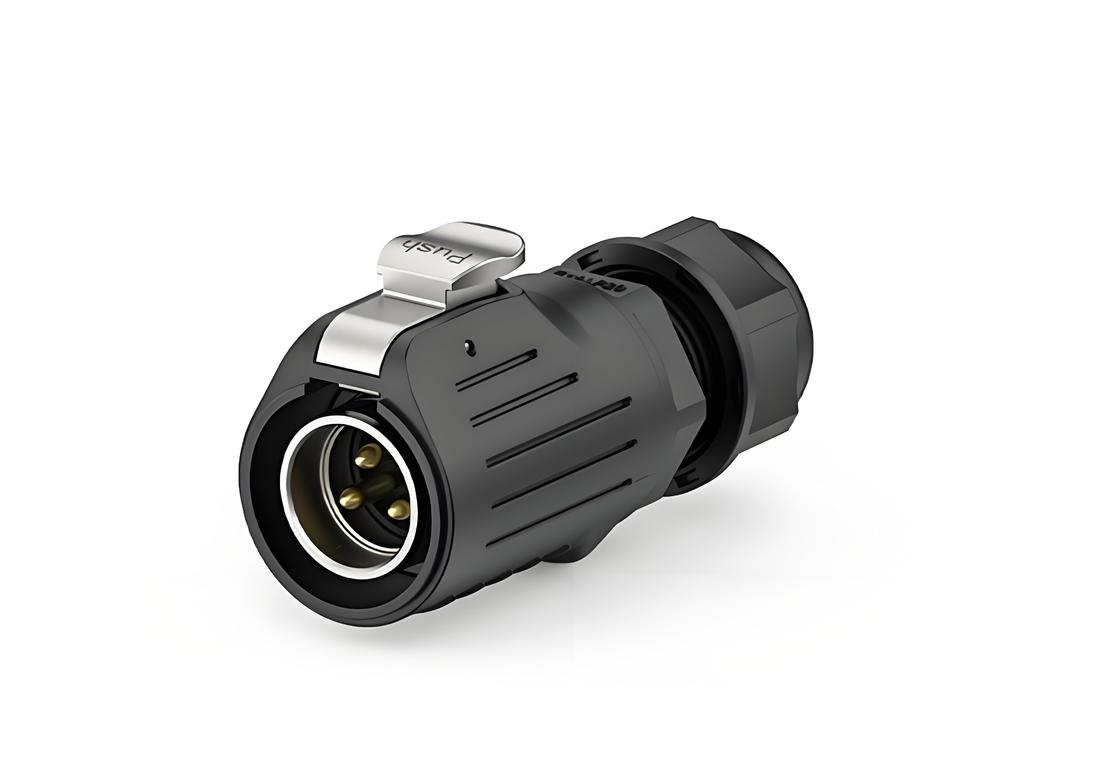

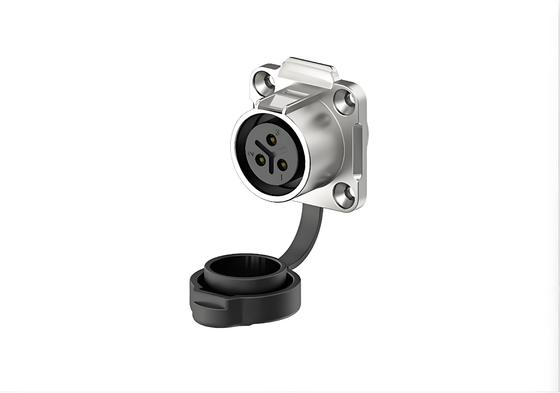

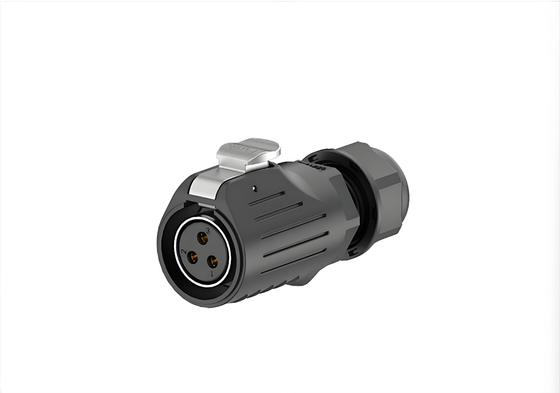

LP20 3-Core 20A IP68 Waterproof Connector Metal Plastic

브랜드 이름:	Cablein
MOQ:	100pcs
가격:	The price ranges from $1 to $4 USD per pieces
포장에 대한 세부 사항:	고품질 수출 상자
지불 조건:	T/T, Western Union

상세 정보

제품 설명

상세 정보

원래 장소:

심천 중국

인증:

CE, ROHS, TUV , ETL

Name:

LP20 3-Core Locking Wire 20A Power Flange Waterproof Connector – Metal + Plastic IP-Rated

Metal:

Gilded brass

Material:

Metal + Plastic

Insertion life:

≥1900 times

Waterproof:

IP68/IP67

Voltage:

500V

Dustproof:

100% Dustproof

Withstand Temperature:

-40℃~+80℃

Flame Resistance Rating:

UL94 V-0

Corrosion Resistance:

High Corrosion Resistance

강조하다:

20A waterproof circular connector

IP68 metal plastic connector

3-core waterproof electrical connector

제품 설명

LP20 3-Core 20A IP68 Waterproof Connector Metal Plastic

Product Specifications

Attribute	Value
Name	LP20 3-Core Locking Wire 20A Power Flange Waterproof Connector – Metal + Plastic IP-Rated
Metal	Gilded brass
Material	Metal + Plastic
Insertion life	≥1900 times
Waterproof	IP68/IP67
Voltage	500V
Dustproof	100% Dustproof
Withstand Temperature	-40℃~+80℃
Flame Resistance Rating	UL94 V-0
Corrosion Resistance	High Corrosion Resistance

Technical Details

Pin: 3 Pin
Current Rating: 20A Max
Connection Method: Push-button snap fastener
Operating Voltage: 500V Max
Assembly Wire: IP-Rated Locking Gland
Mounting Type: Flange Mounting
UV Resistance: Pass (Outdoor rated)
Cable Jacket OD: 2.5-4 mm²

Performance Specifications

Pins Number	2Pins	3Pins	4Pins	5Pins	7Pins	9Pins	12Pins
Rated Voltage	500V \| 250V
Rated Current	20A	20A	10A	5A	5A	5A	5A
Insulation voltage	2.5KV				1.5KV
IP CODE	IP68

Key Advantages

Material & Performance: High-performance PBT engineering plastic housing with stable electrical properties, excellent heat resistance, and corrosion resistance. Gold-plated conductive components ensure superior conductivity.
Secure Locking Mechanism: Push-to-lock snap-fit design for secure mating and smooth insertion/removal.
Waterproof Design: Standard IP67 rating (IP68 optional) provides precise waterproof protection.
Certifications & Compliance: Complies with TUV, ISO, CE, and RoHS certifications.

Application Industries

Automation Equipment
LED Lighting
Security Equipment
Telecommunication Equipment
New Energy
Electronic Devices

LP20 3-Core Locking Wire 20A Power Flange Waterproof Connector

Technical Drawing

Assembly Diagram

Frequently Asked Questions

Q: What is the IP rating of this connector, and what environments is it suitable for?

A: The LP20 connector is rated IP67 (standard) or customizable up to IP68, providing dustproof protection (complete prevention of dust ingress) and waterproof capability (submersion up to 1m for 30 minutes at IP67). Ideal for harsh environments like industrial machinery, outdoor LED lighting, marine equipment, and automotive applications.

Q: How does the locking wire mechanism ensure secure connections?

A: The 3-core locking wire design features cable gland strain relief to prevent wire pull-out due to vibrations/tension, threaded lock ring to ensure a tight seal against moisture and dust, and metal-plastic hybrid construction that combines durability (metal flange) with corrosion resistance (plastic housing).
