| 브랜드 이름: | Cablein |
| MOQ: | 100pcs |
| 가격: | The price ranges from $1 to $4 USD per pieces |
| 포장에 대한 세부 사항: | 고품질 수출 상자 |
| 지불 조건: | T/T, Western Union |
| Pins Number | 2Pins | 3Pins | 4Pins | 5Pins | 7Pins | 9Pins | 12Pins |
|---|---|---|---|---|---|---|---|
| Rated Voltage | 500V | 250V | |||||
| Rated Current | 20A | 10A | 5A | ||||
| Insulation voltage | 2.5KV | 1.5KV | |||||
| IP CODE | IP68 | ||||||
| Cable Jacket OD | Standard Power:⌀8-12mm Standard Signal:⌀5-6.5mm Other:⌀5-9mm | ||||||
| Assembly cable diameter | 2.4-4mm²/14-12AWG | 1-1.5mm²/18-16AWG | 0.34-0.75mm²/22-20AWG | ||||
| Ambient temperature | -40℃~+80℃ | ||||||

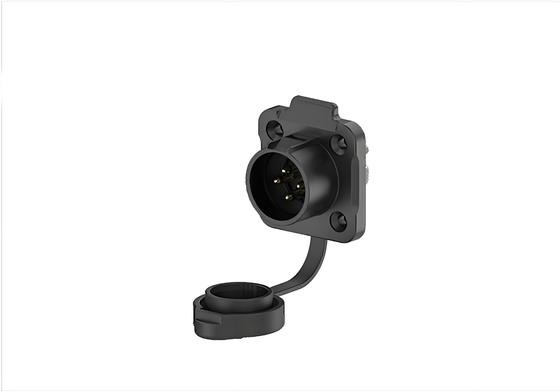

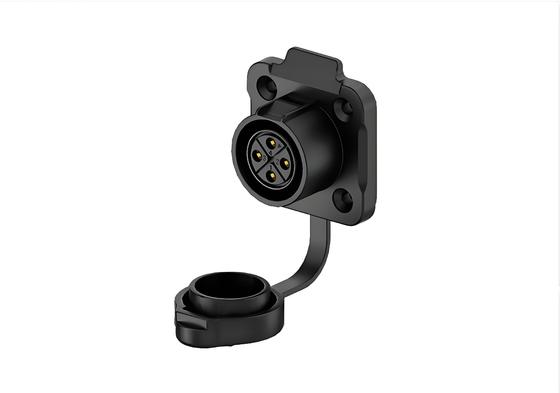

The all-plastic design provides complete electrical insulation, exceptional corrosion resistance, and lightweight properties. Unlike metal connectors, it will not rust or corrode in humid, salty, or chemical environments. The material also provides excellent impact resistance and thermal stability from -40°C to 120°C.

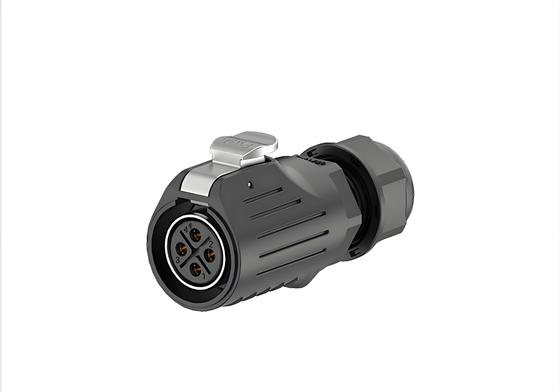

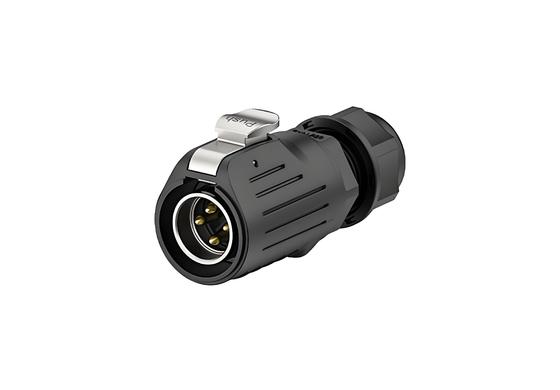

The integrated wire lock system features a secure snap-lock design that prevents accidental disconnection from vibration or pulling. Simply push the locking tab until it clicks into place - no tools required. This ensures reliable power transmission in high-vibration applications such as industrial machinery, automotive systems, and outdoor equipment.
Q:What makes this connector suitable for 20A power applications?
This connector is engineered with oversized contacts and optimized thermal management to handle 20A continuous current. The full plastic housing provides excellent heat dissipation, while the precision-machined contacts minimize resistance. It meets IP68 standards for complete waterproof protection, making it ideal for high-current applications in demanding environments.
|
|
